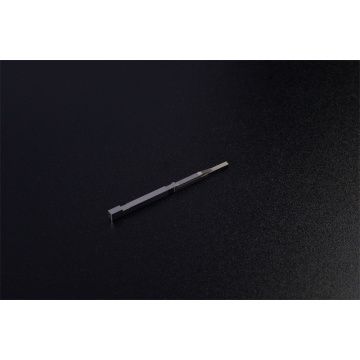

PG Profile Grinding for Precision Mold Components

Get Latest Price

Brand:yushunmoulds
Min. Order:1 Piece/Pieces
Place of Origin:China

Optical projection grinding machine, also known as pg, is originally produced by Japanese waxinuo company, model is waxinuo5T, its maximum spindle speed can reach 30,000 rpm, and the maximum up and down stroke is 110mm. The maximum up and down...

Contact Now

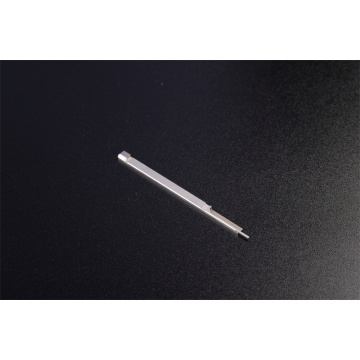

High-precision Processing PG Optical Grinding Parts

Get Latest Price

Brand:yushunmoulds
Transportation:Ocean
Place of Origin:China

What is PG optical grinding PG optical curve grinding is mainly used for finishing some micro products. It is used to process key parts in precision equipment such as dies. It is suitable for molding and grinding of high-hardness materials. It is an...

Contact Now
customized tungsten carbide grade PG for stamping mold

Get Latest Price

Brand:yushun
Transportation:Ocean
Place of Origin:dongguan

Custom punching mold carbide PG punch stamping parts are used in the manufacturing industry to create precise and accurate punched holes in sheet metal, plastic, and other materials. These punching molds are made of carbide, a material that is known...

Contact Now
Custom Punching Mold Carbide PG Punch Stamping Parts

Get Latest Price

Brand:yushun
Transportation:Ocean
Place of Origin:dongguan

Custom punching mold carbide PG punch stamping parts are used in the manufacturing industry to create precise and accurate punched holes in sheet metal, plastic, and other materials. These punching molds are made of carbide, a material that is known...

Contact Now
Customized high precision punch die insert PG part

Get Latest Price

Brand:yushun
Transportation:Ocean
Place of Origin:dongguan

customized high precision punch die insert PG part is a component used in the manufacturing of various products. It is designed to fit into a punch die and create precise cuts or shapes in materials such as metal, plastic, or paper. The PG part is...

Contact Now

optical profile grinding

PG Optical Curve Grinding, also known as optical profile grinding, is a precision manufacturing technique used to grind and shape complex profiles on various materials. It is commonly used in the fabrication of molds, dies, and other components with intricate geometries.

Profile Design: The first step in optical PG processing is designing the desired profile. This can be done using computer-aided design (CAD) software or by creating a physical template.

Projection System Setup: An optical projection system is set up, consisting of an optical projector and a precision worktable. The projector projects a magnified image of the profile onto the workpiece surface

Workpiece Preparation: The workpiece, which can be made of materials such as metal, ceramic, or glass, is prepared by mounting it securely on the worktable. The workpiece position and orientation are adjusted to align with the projected image.

Grinding Wheel Selection: A suitable grinding wheel or tool is selected based on the material being machined and the required precision. The grinding wheel can be diamond, cubic boron nitride (CBN), or another abrasive material.

Grinding Process: The grinding wheel is carefully brought into contact with the workpiece surface and moved along the projected profile. The grinding wheel removes material gradually to achieve the desired shape. The process is typically performed in multiple passes, with intermediate measurements and adjustments as needed.

Control and Measurement: During the grinding process, measurements are taken to ensure the accuracy of the profile dimensions and surface finish. Optical systems or metrology equipment may be used for precise measurements and feedback control.

Finishing: After the rough grinding is complete, additional steps like polishing or fine grinding may be performed to achieve the desired surface quality and tolerances.
