High-precision mold processing PG optical grinding technology

February 29, 2024

PG optical grinding is a high-precision machining process. Use a plotter to coordinate the processing. The plotter will draw the graphics required for processing on the film. The film will be pasted on the projection screen and calibrated. The processor will perform molding and processing based on the graphics on the film.

Optical projection grinding is suitable for molding and grinding of high-hardness materials. It is usually used for precision machining of high-speed mold parts. According to the size of the workpiece, it is magnified 20-50 times through a projector and projected on the screen before processing. The tolerance can be guaranteed to be within 0.002mm. .

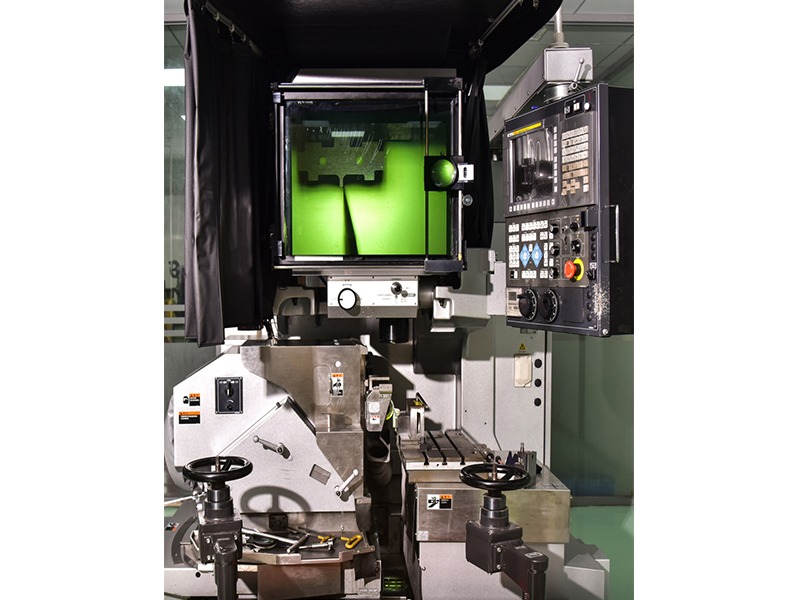

PG Optical Grinding

PG optical grinding is suitable for processing high-hardness workpieces: (HRA) 88-96, such as workpieces made of tungsten steel or carbide, and occasionally some high-speed steel workpieces. Tungsten steel parts-parts requiring high toughness/compressive strength and hardness. Suitable industries: Blades and punches for ultra-thin connector dies in the IT industry, molds for high-speed precision punches, etc.

PG optical grinding processing range:

1. Production of continuous die base (Material: steel, aluminum)

2. Continuous die template preparation
3. Production of various guide posts, guide bushes, and various mold parts

4. Heat treatment template grinding

5. Forming and grinding

6. Hardware continuous mold design and development

7. Wire cutting processing of hardware molds and plastic molds

8. Spark machine electric discharge processing, tungsten steel electric discharge processing, general steel alloy material electric discharge processing, thread (thread) electric discharge processing, electrode manufacturing and processing

9. Optical projection grinding, tungsten steel forming and grinding, cemented carbide forming and grinding, ceramic mold forming and grinding, mold parts manufacturing and processing

10. Hardware stamping mold processing (special-shaped punch, lower mold insertion, stripping and block insertion, bending punch, pre-cut punch), lead frame mold parts manufacturing and processing

11. Plastic mold parts insert processing
